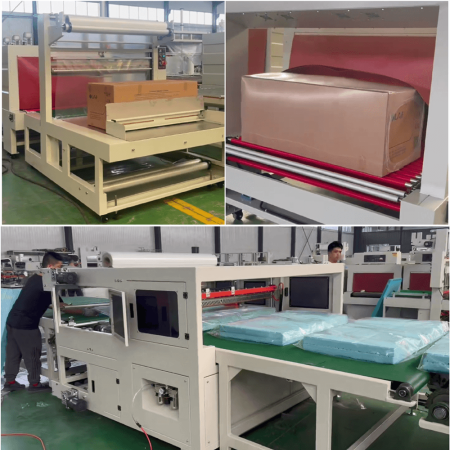

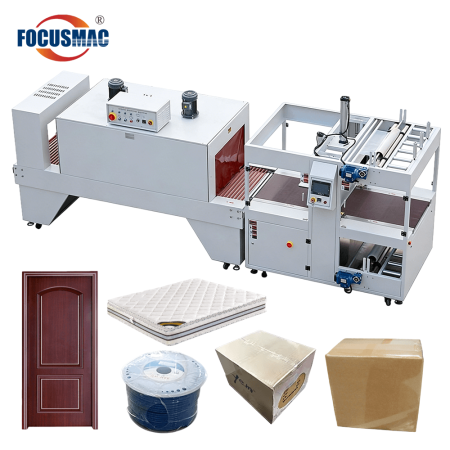

Automatic Heat Shrink Wrapping Machine for Big Size Product
Feature:
1. The linear chain feeding method with a unique and optimal design enables no limit on the length of the packaging materials, and compared with ordinary side feeding machines, it also has advantages in speed and connection.
2. This unit is manufactured with advanced foreign technologies and processes, and its equipment performance is stable and reliable.
3. This set of units has a precise structure and realizes the integration of machine, electricity and gas.
4. The specially designed sealing knife ensures a firm, non-cracking and non-sticky seal.
5. Three sets of horizontal detection photoelectric devices accurately position and can sense different products.
6. The user-friendly control box and circuit board facilitate the operation and maintenance of the operators.
7. A material pressing device is equipped at the rear end during sealing, which ensures that items with lighter packaging will not shift.
8. Four air blowers are used to make the hot air in the furnace cavity spread evenly, resulting in a more beautiful shrinkage effect.
Parameter:
|
Product name |
Wrapping machine |
Product name |
Shrinking machine |
|
Power |
3kW, 220V, 50/60Hz |
Power |
35kW, 3phase 220V |
|
Speed |
1-12 pack/min |
Speed |
0-18m/min |
|
Packing width |
200-600mm |
Oven size |
2500*1000*800mm |
|
Packing height |
200-460mm |
Capacity |
80KG (max) |
|
Film material |
PE |
Film material |
PE,PVC,POF |
|
Machine Weight |
850KG |
Machine Weight |
900KG |

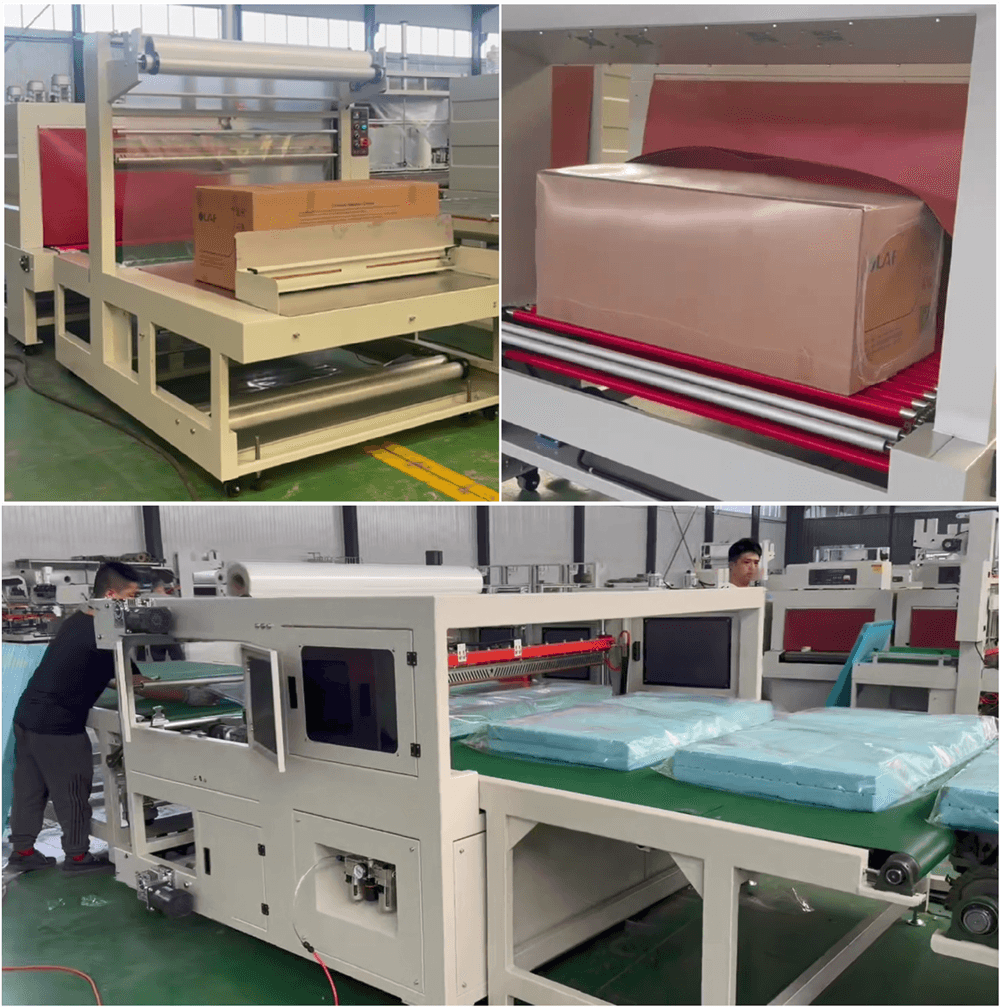

Machine Details:
