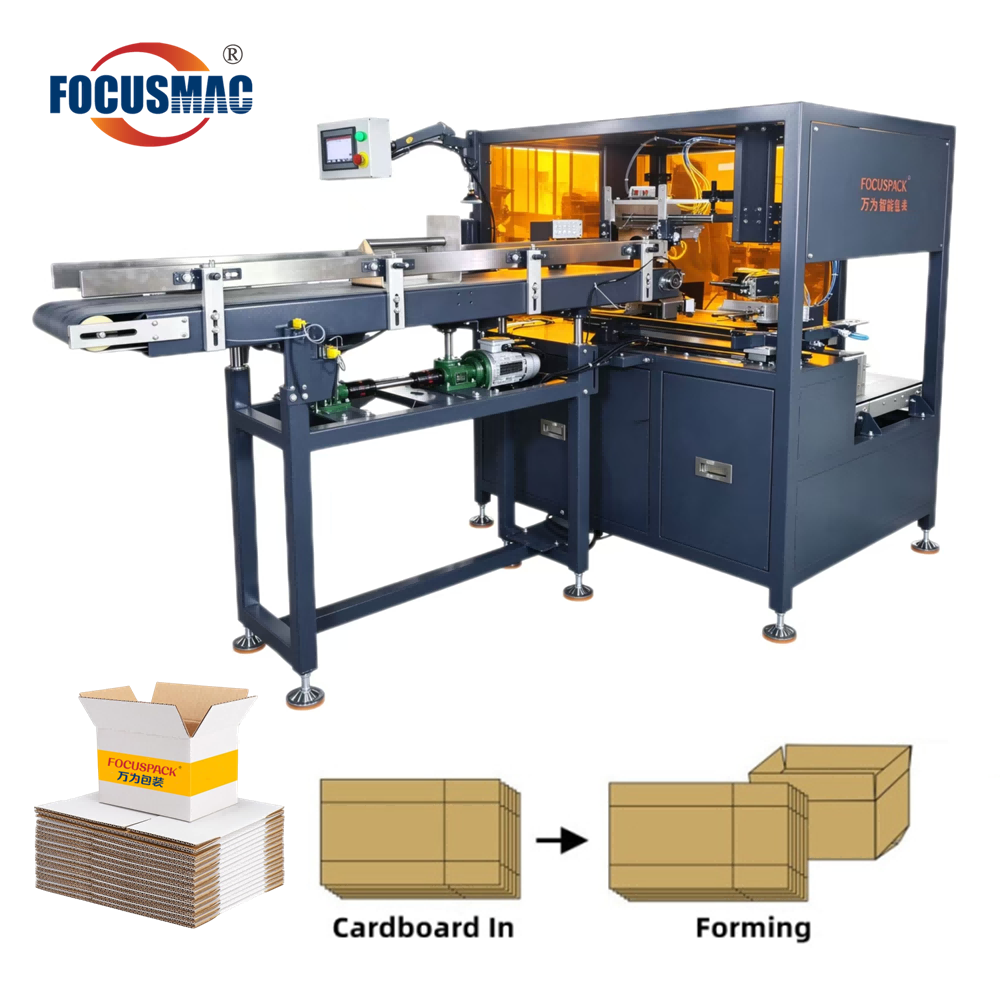

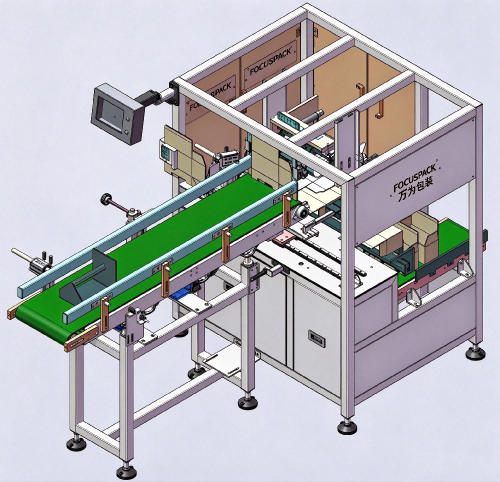

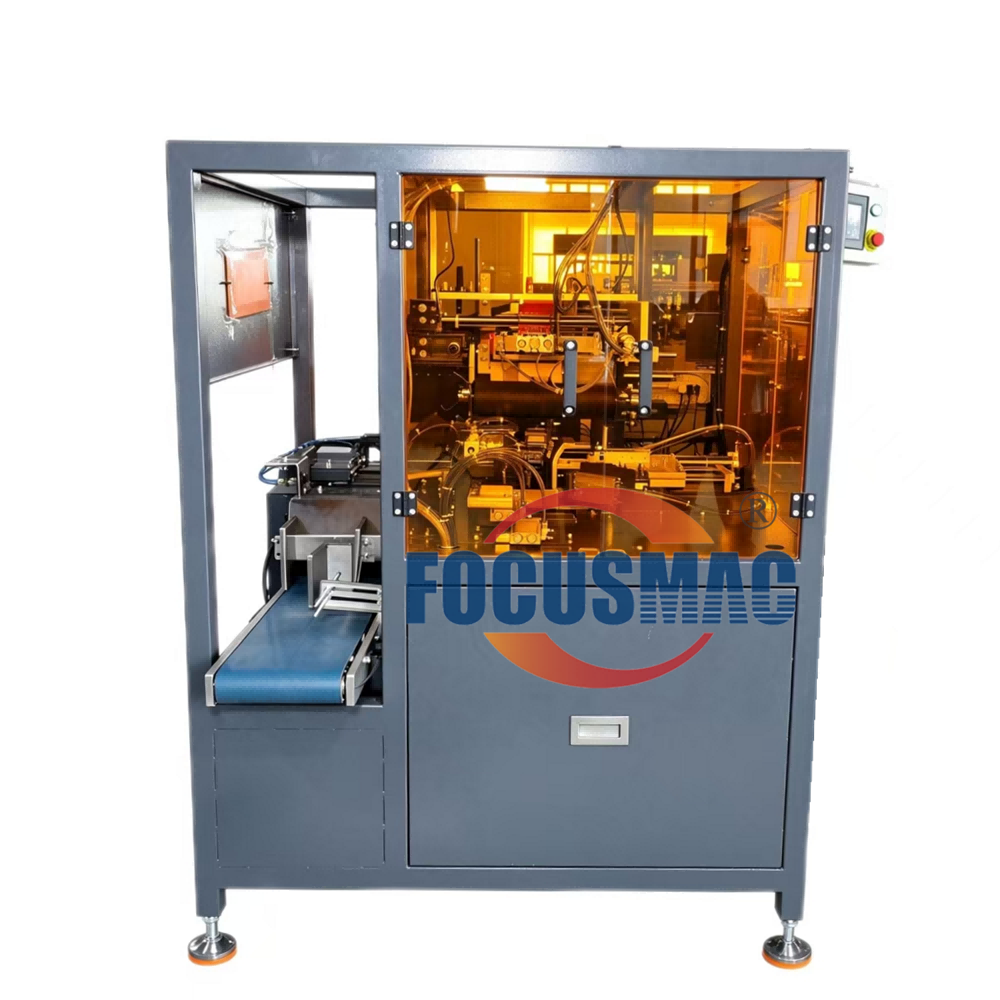

FM-P04S Automatic Box Erector
Manually opening small folding cartons and tucking snap-lock bottoms slows down packaging lines and requires multiple operators. The FM-P04S Automatic Box erector picks, opens, erects, and locks carton bottoms at 20 to 24 cartons per minute without tape or glue, replacing 2 to 4 manual workers.
Product Parameter:
- Model: FM-P04S Box Erector
- Speed: 20-24 cartons/min
- Carton Size: L 100-180 x W 70-100 x H 70-115 mm
- Board Type: 250-400 g/m² white card / grey board / coated
- Bottom Style: Auto bottom-lock (no tape / no glue)
- Magazine: 300-500 cartons (refillable)
- Power: 220V/50Hz · 1.5 kW
- Air Supply: 0.5 MPa · 45 L/min
- Control: PLC HMI (speed / counter / alarm)
- Machine Size: 2680 x 1350 x 1610 mm
Product Details:
1. High Speed 20-24 Cartons Per Minute with Snap-Lock Bottom:
Operating at 20 to 24 cartons per minute, the machine picks flat blanks, opens the carton body, and interlocks the bottom flaps securely. Erected cartons are square, firm, and load-bearing, feeding directly inline to downstream cartoning machines without coming loose.
2. Carton Sizes L 100-180 x W 70-100 x H 70-115mm:
Engineered for small folding boxes, the erector accommodates box lengths from 100mm to 180mm, widths from 70mm to 100mm, and heights from 70mm to 115mm. It runs 250 to 400 g/m2 white card, grey board, and coated paperboard for hardware, food, and electronics packaging.
3. Large 300-500 Carton Refillable Magazine:
The high-capacity magazine holds approximately 300 to 500 flat cartons at a time. Operators can replenish carton blanks while the machine is running, ensuring continuous packaging without stopping production.
4. Smart PLC HMI Control with Fault Alarms:
The touchscreen HMI provides real-time speed monitoring, piece counting, and diagnostic alarms. Smart sensors detect missing cartons, jams, or air pressure drops, triggering automatic stops to protect mechanical assemblies.
5. Compact 2680x1350x1610mm Frame and 1.5kW Power:
Measuring 2680 x 1350 x 1610mm, the machine fits easily ahead of cartoning lines. It requires 220V 50Hz power at 1.5kW and standard compressed air at 0.5 MPa, 45 L/min for factory integration.

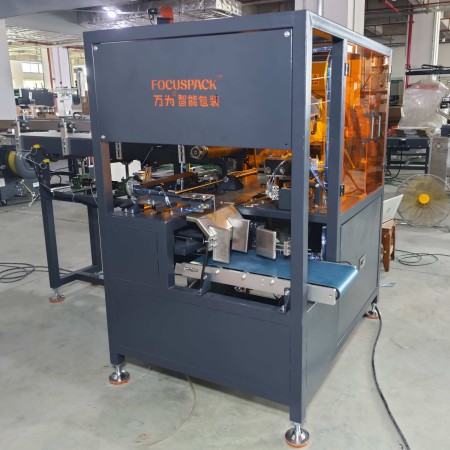

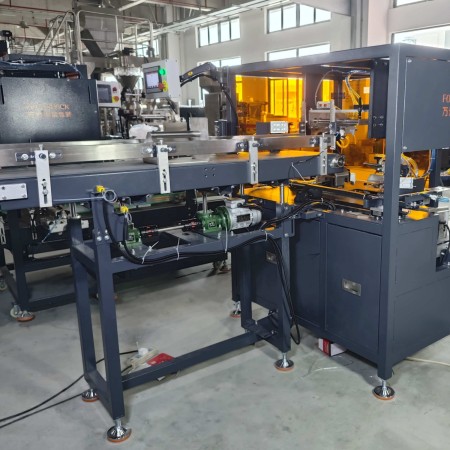

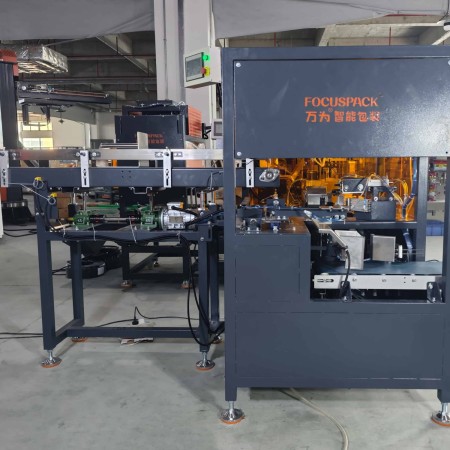

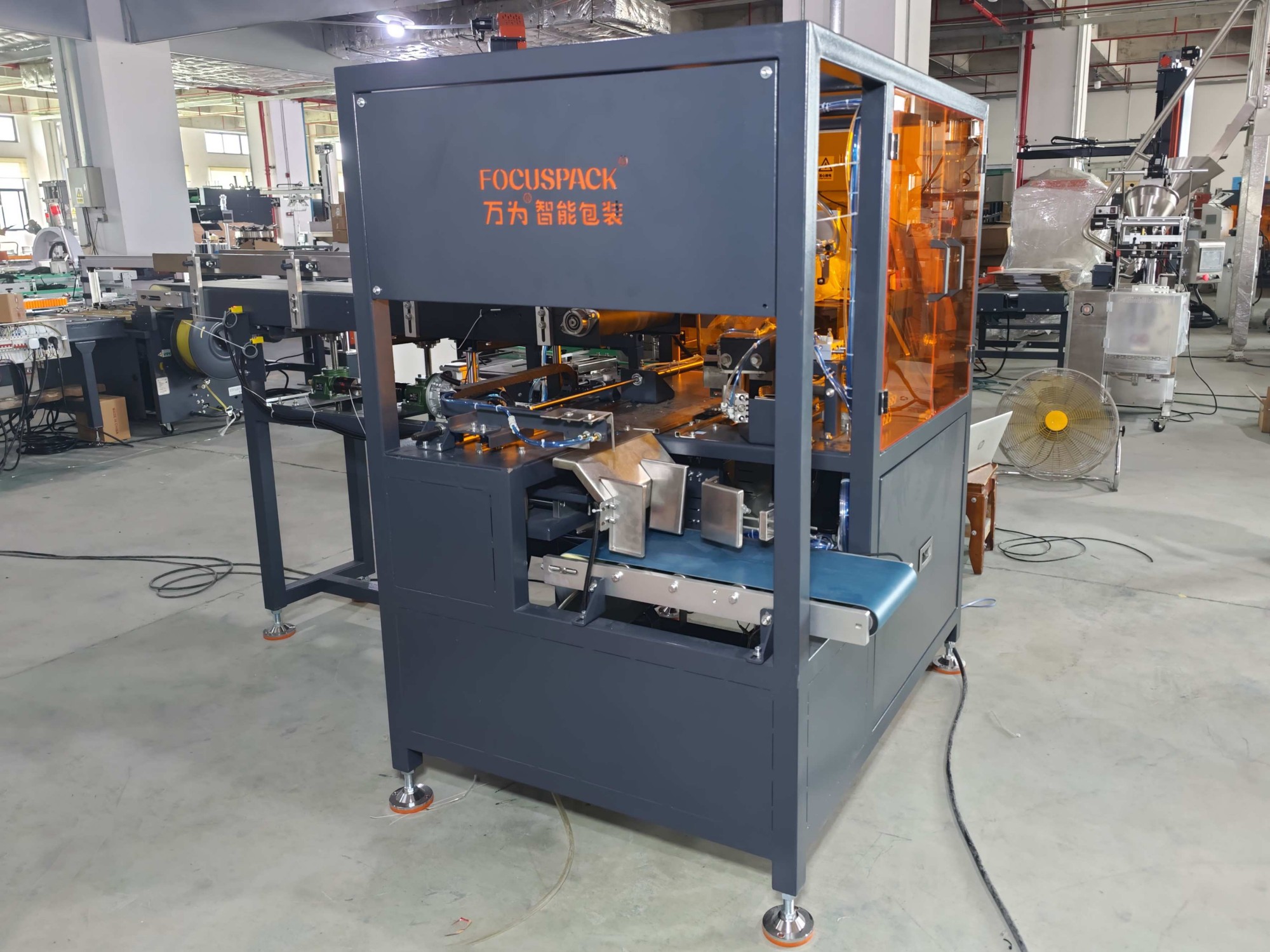

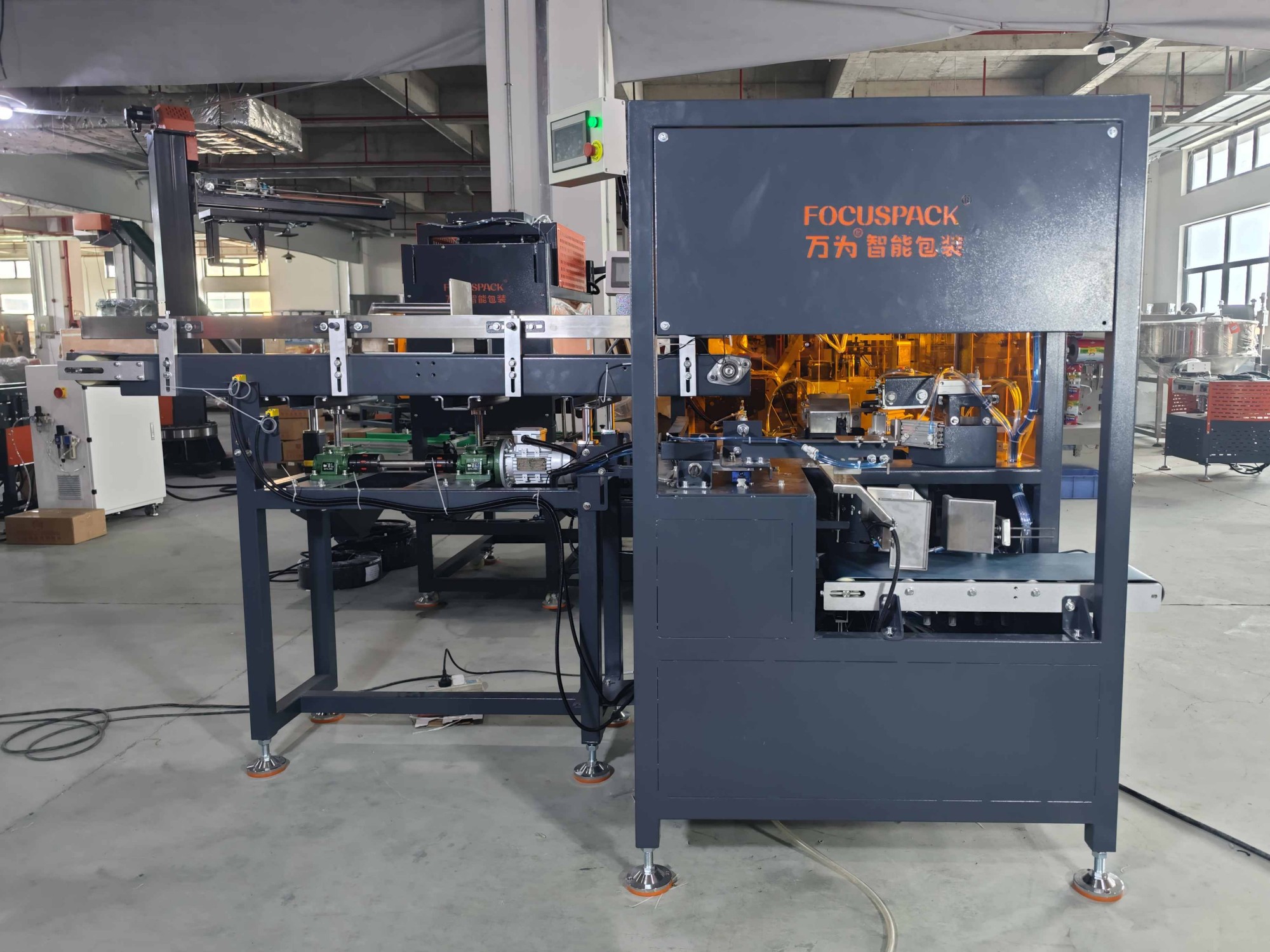

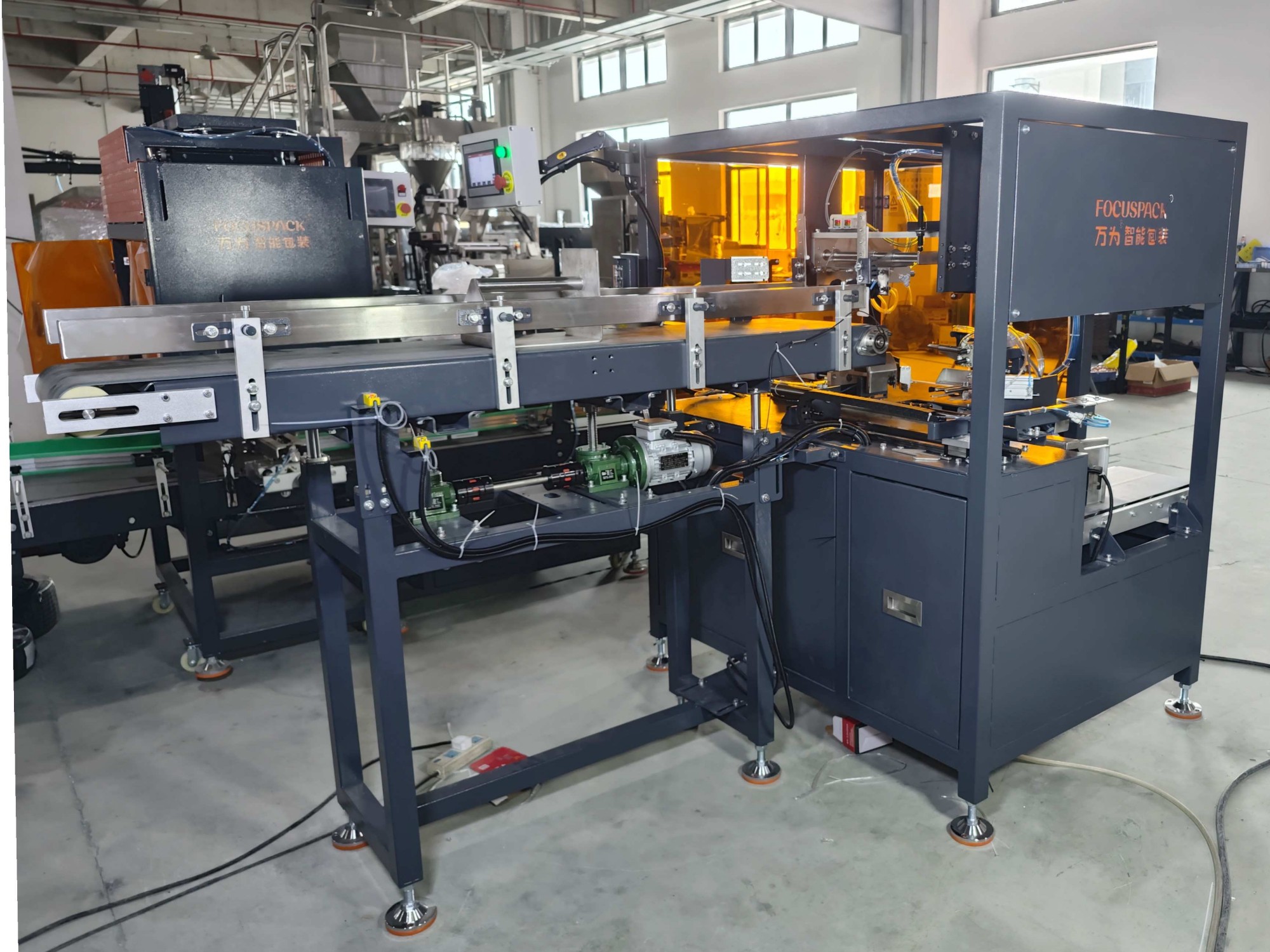

Real Shots:
